Air Handling Unit 150 - 300 | Air Handling Unit

BENEFITS

Facilitates Multi-Purpose Climate Control

Although these units can provide standalone ventilation, they are more popularly used to optimise climates in large, localised areas.

Multiple Airflow Options

From 4,200m³ to 30,060m³ per hour airflow to accommodate a wide variety of area sizes and projects.

Plug and Play

Depending on your chosen unit and application, some units can simply be connected to power and are ready to use.

Three-in-One Climate Control

Capable of facilitating air conditioning, heating, and ventilation when connected to compatible equipment.

Scalable to Your Project

Can integrate with HVAC components to suit a range of different building sizes and types.

CLIMEX® Air Handler Units

Circulates Warm or Cool Air

Static units with three sizing options that can be connected to fluid chillers or heating boilers and facilitate large-scale cooling or heating as a crucial component of a HVAC system.

View Spec Sheets

Add To Quote

BENEFITS

Facilitates Multi-Purpose Climate Control

Although these units can provide standalone ventilation, they are more popularly used to optimise climates in large, localised areas.

Multiple Airflow Options

From 4,200m³ to 30,060m³ per hour airflow to accommodate a wide variety of area sizes and projects.

Plug and Play

Depending on your chosen unit and application, some units can simply be connected to power and are ready to use.

Three-in-One Climate Control

Capable of facilitating air conditioning, heating, and ventilation when connected to compatible equipment.

Scalable to Your Project

Can integrate with HVAC components to suit a range of different building sizes and types.

Cooling

Key Features and Applications

Moves high volumes of air through an easy to control unit to allow climate controls in environments such as in data centres, factories, marquees and more.

- Three size options available with airflow up to 30,060m³/h.
- Connects to fluid chillers or boilers.
- Plug and play options available.
- Climate control in large temporary enclosures (e.g. building shells, warehouses, hangars etc) during fit-out or finishing works.
- Temporary HVAC for transport hubs or stations during renovation or emergency repairs.
- Facilitates cooling and heating for marquees, exam halls, sports halls, server rooms, supermarkets, events and many more.

Add To Quote

Product Comparison

Comparison Table for CLIMEX® Air Handler Units

Book a free consultation


Specification	CLIMEX® Air Handler Unit 30 - 60	CLIMEX® Air Handler Unit 150 - 300	CLIMEX® Air Handler Unit 250 - 500
Nominal Cooling	30kW - 60kW	150kW - 300kW	250 - 500kW
Nominal Heating	N/A	300kW	500kW
Airflow	4200m³/hr	30060m³/hr	20160m³/hr
Outlet	3 sided air discharge plenum or optional 500mm duct spigot	4 off 640mm Diameter	2 off 600mm Diameter
Inlet	Via Louvre	4 off 640mm Diameter	2 off 600mm Diameter
Plug	13amp plug	5 pin 32a	32a
Power	230v Single Phase	415v 3PN & E Full load current 22.6a Start-up current 132a	415v 3PN & E Full load current 22.6a Start-up current 132a
Length	1050mm	3600mm	2260mm
Width	500mm	2300mm	2110mm
Height	1700mm	2200mm	1700mm
Weight	140kg	N/A	934kg
	Download Spec Sheet	Download Spec Sheet	Download Spec Sheet

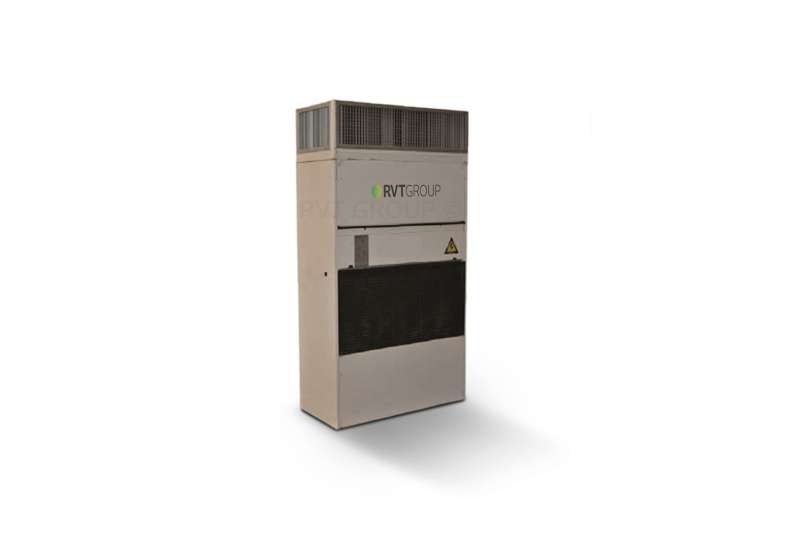

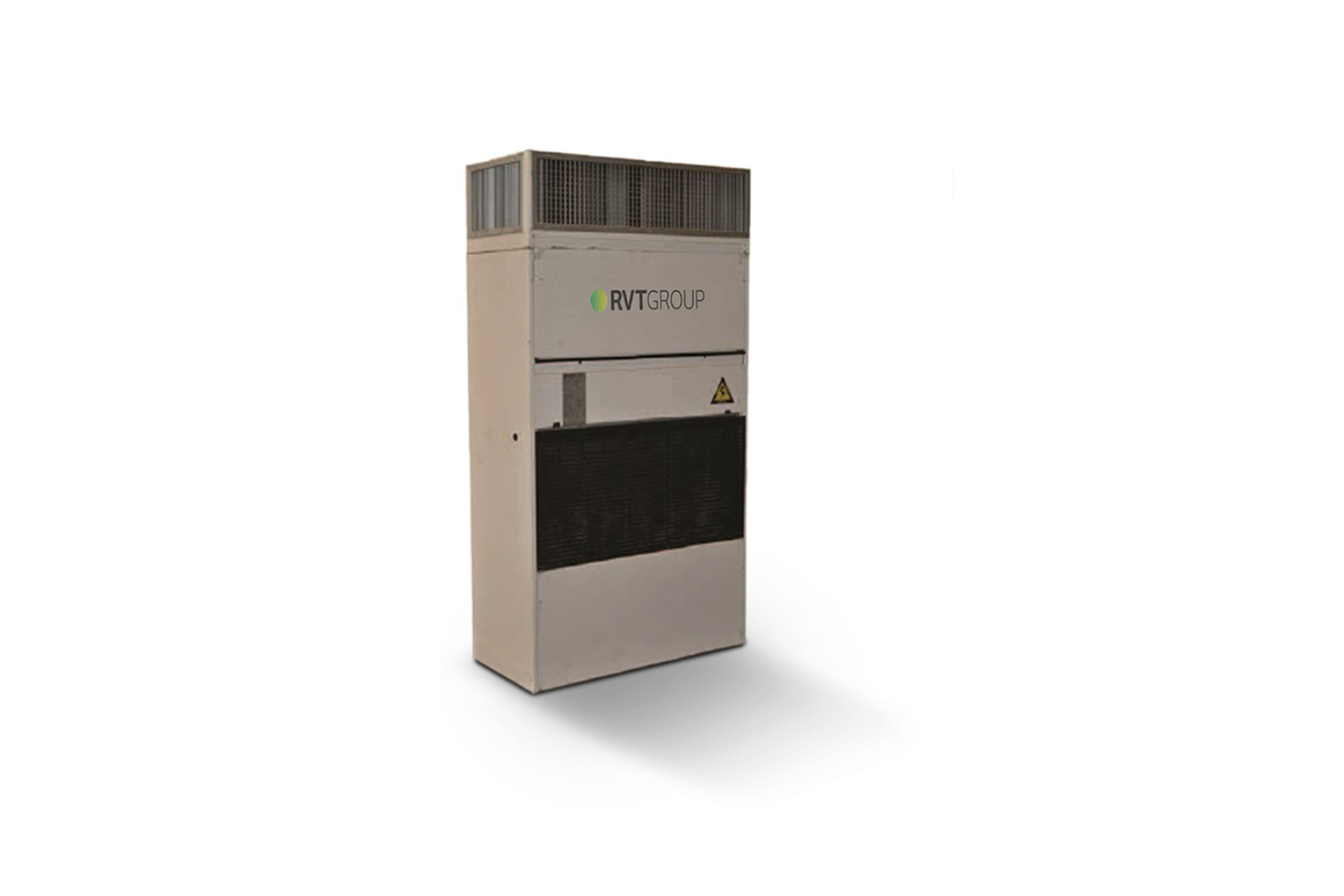

CLIMEX® Air Handler Unit 30 - 60

Nominal Cooling	30kW - 60kW
Nominal Heating	N/A
Airflow	4200m³/hr
Outlet	3 sided air discharge plenum or optional 500mm duct spigot
Inlet	Via Louvre
Plug	13amp plug
Power	230v Single Phase
Length	1050mm
Width	500mm
Height	1700mm
Weight	140kg
Download Spec Sheet

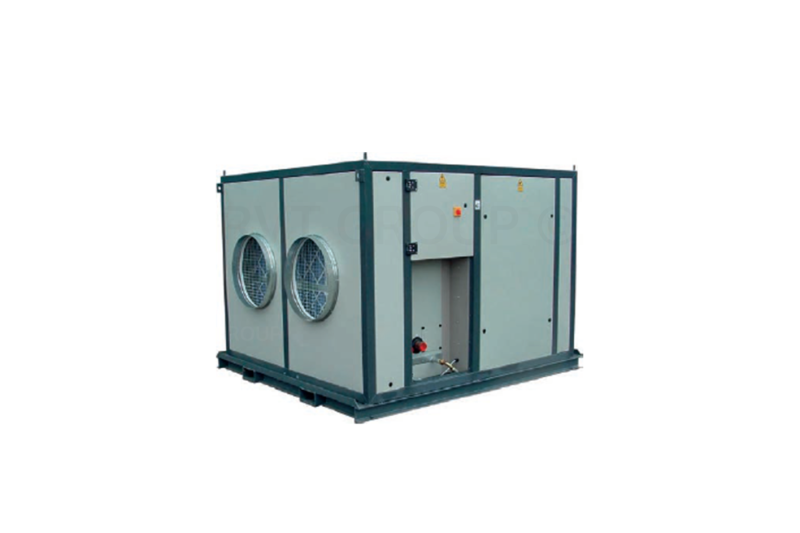

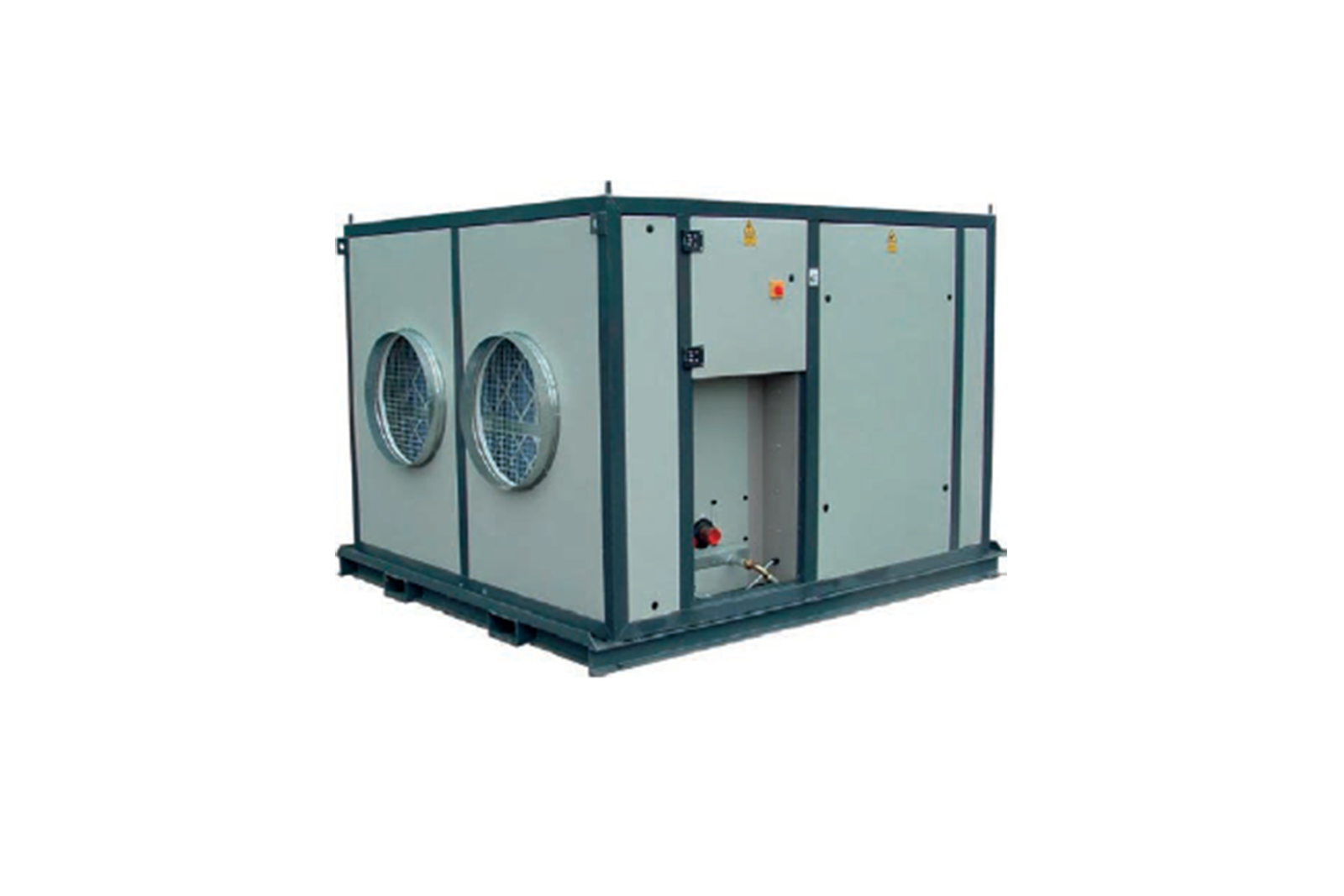

CLIMEX® Air Handler Unit 150 - 300

Nominal Cooling	150kW - 300kW
Nominal Heating	300kW
Airflow	30060m³/hr
Outlet	4 off 640mm Diameter
Inlet	4 off 640mm Diameter
Plug	5 pin 32a
Power	415v 3PN & E Full load current 22.6a Start-up current 132a
Length	3600mm
Width	2300mm
Height	2200mm
Weight	N/A
Download Spec Sheet

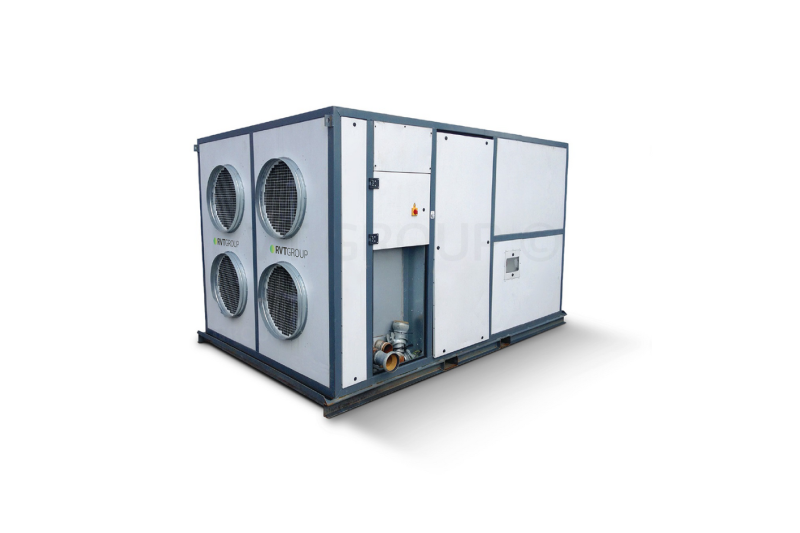

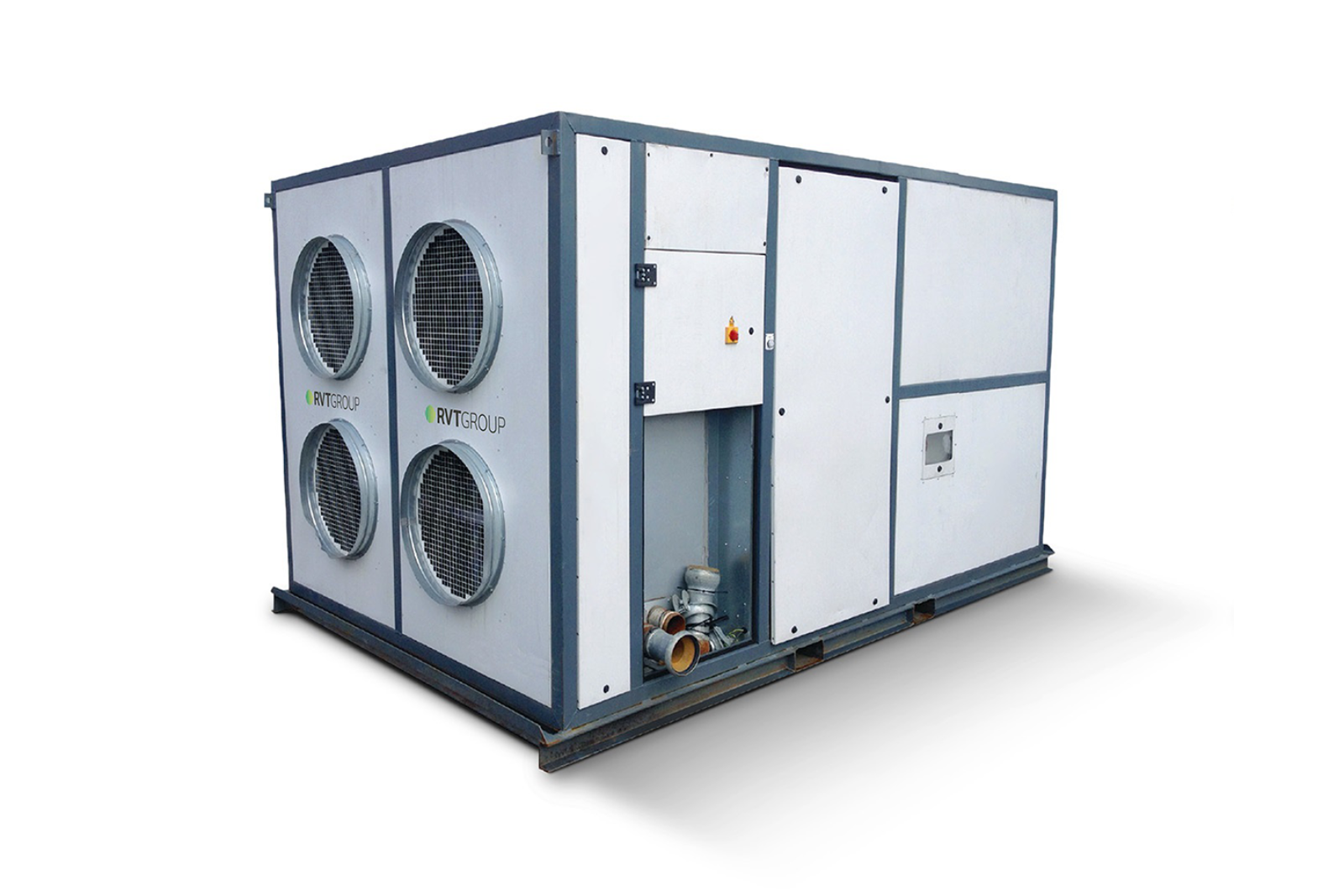

CLIMEX® Air Handler Unit 250 - 500

Nominal Cooling	250 - 500kW
Nominal Heating	500kW
Airflow	20160m³/hr
Outlet	2 off 600mm Diameter
Inlet	2 off 600mm Diameter
Plug	32a
Power	415v 3PN & E Full load current 22.6a Start-up current 132a
Length	2260mm
Width	2110mm
Height	1700mm
Weight	934kg
Download Spec Sheet

NEXT STEPS

Choosing the Right Solution

Whether you need help selecting the right solution for your project or you are ready to place an order, our specialists are here to provide expert advice and support every step of the way.

Step One: Discuss

Contact us in a way that works best for you. Whether you email, telephone or complete an online enquiry form, a member of the team will be ready to help.

Speak with a Consultant

Step Two: Plan

Once we know what the challenge is, we'll contact you and recommend an effective hazard control solution that protects your people and keeps your project on track.

Step Three: Execute

When you're ready to place an order, we'll ask you to organise a PO, and we'll take care of the rest. Our service includes providing the RAMS and logistics for any solutions that you have on site. Once delivered, you can rest assured with ongoing technical support, engineer access and superior customer service throughout the hire.
