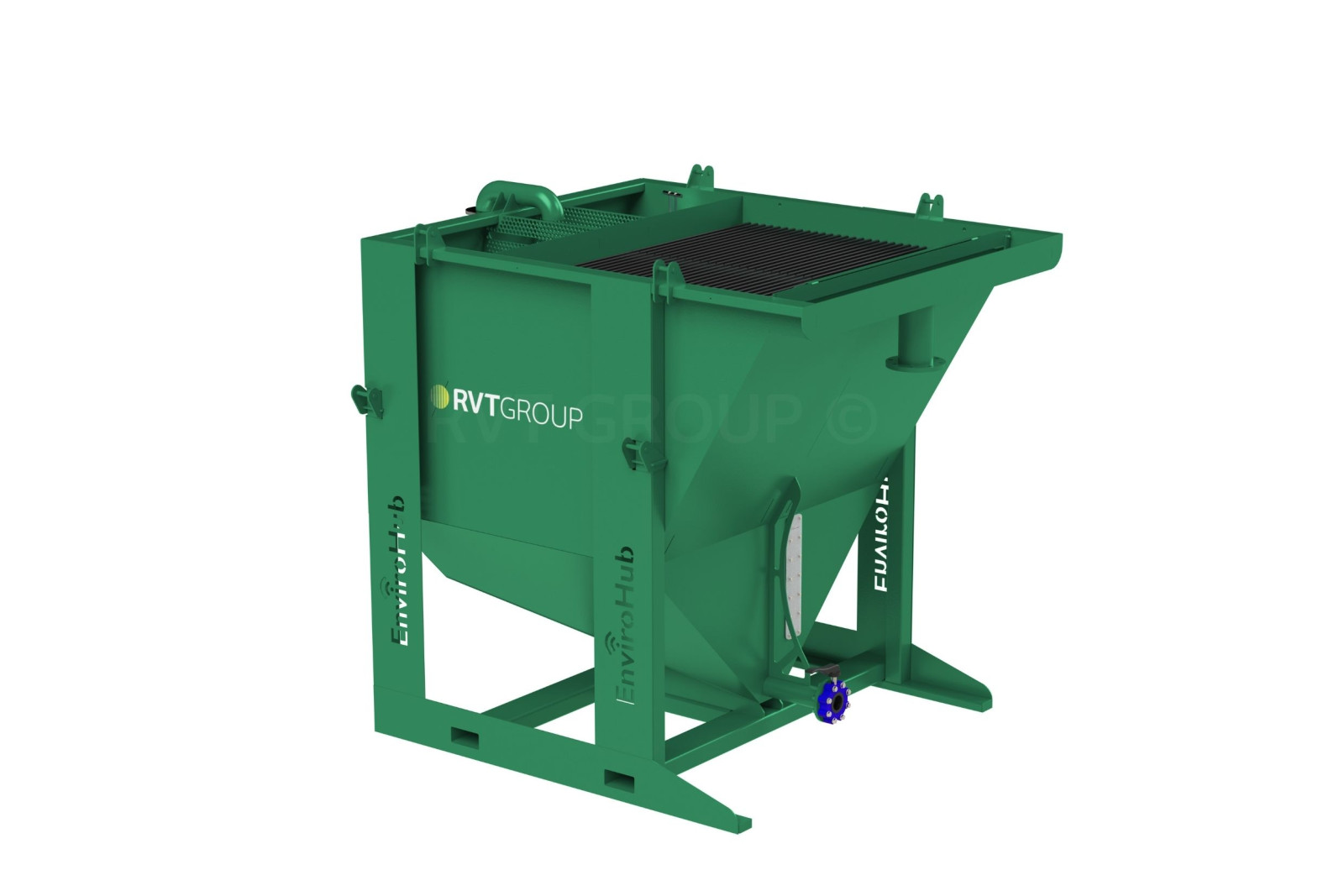

EnviroHub® HL50 Lamella Plate Settlement Tank

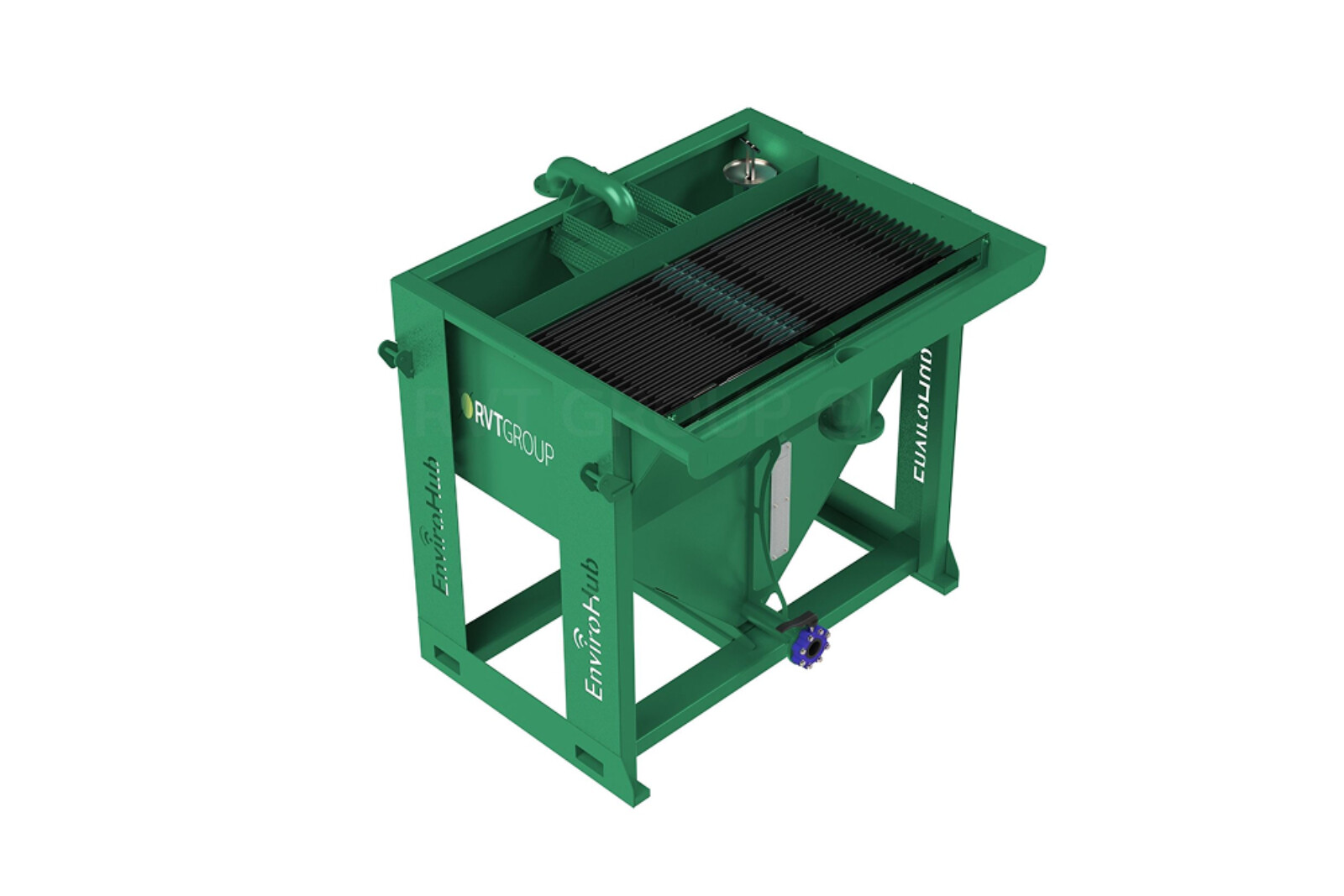

EnviroHub® HL20 Lamella Plate Settlement Tank 1

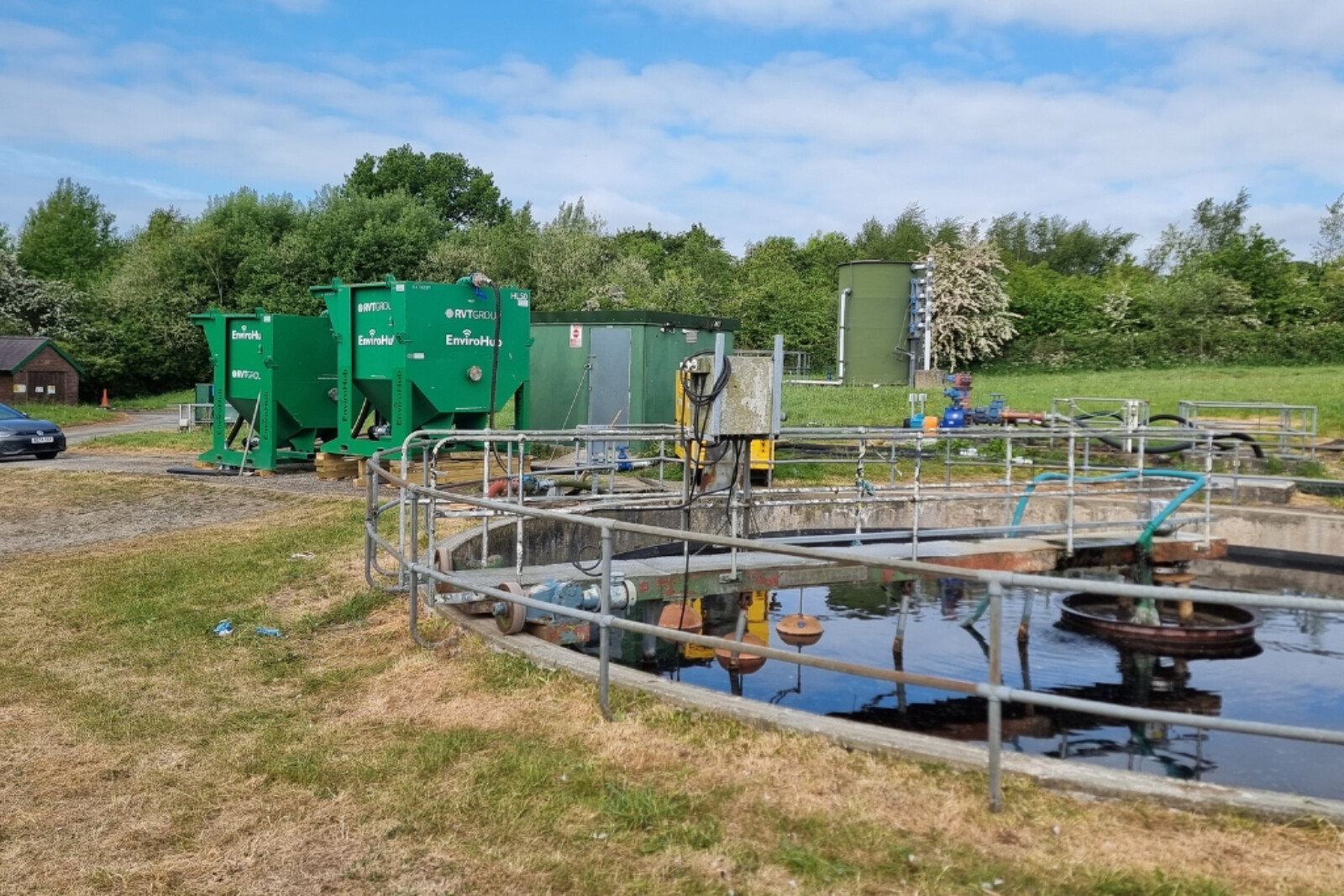

Two HL50 Settlement Tanks at a Wastewater Treatment Works facility to temporarily remove silt from water in the secondary clarifier in Severn Trent

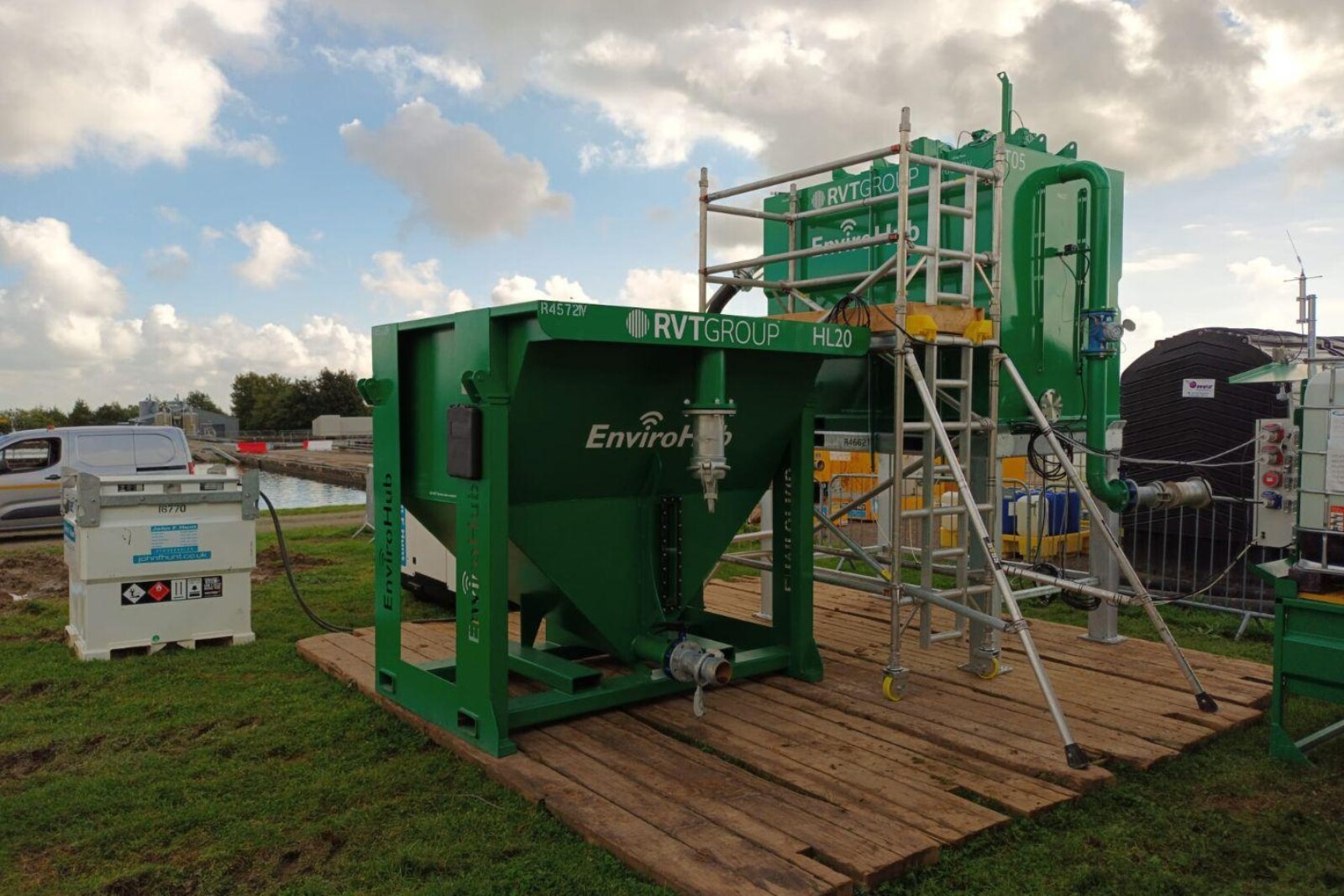

EnviroHub® HL20 Lamella Plate Settlement Tank and treatment tank ready for dewatering on site

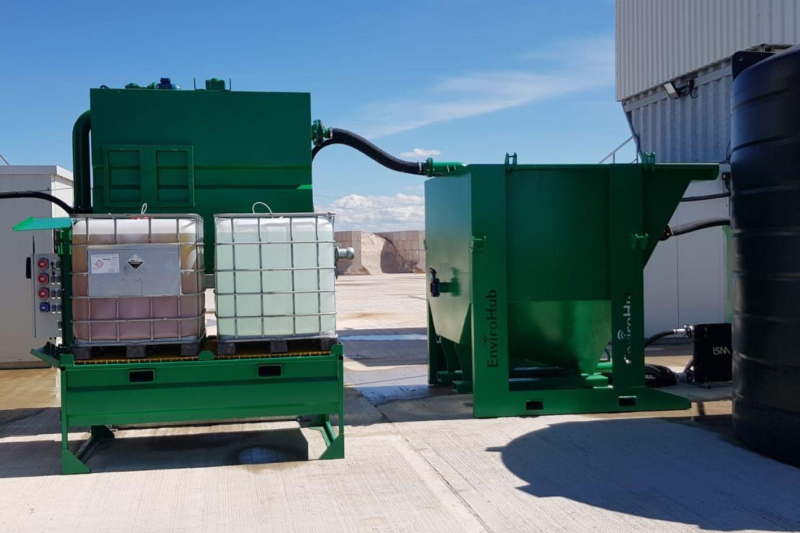

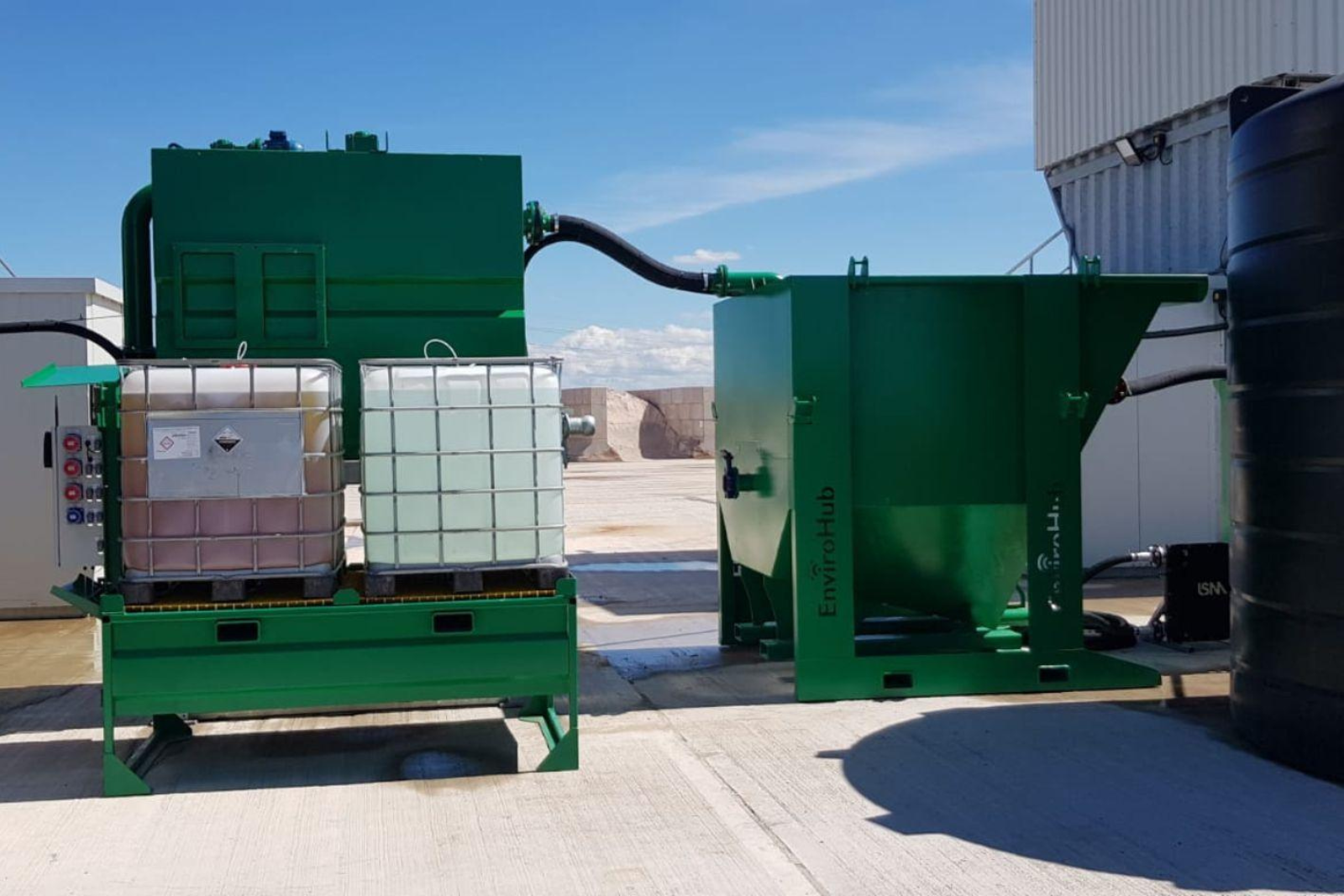

EnviroHub HL50 settlement tank, treatment tank and dosing skid ready to provide water treatment on an industrial project

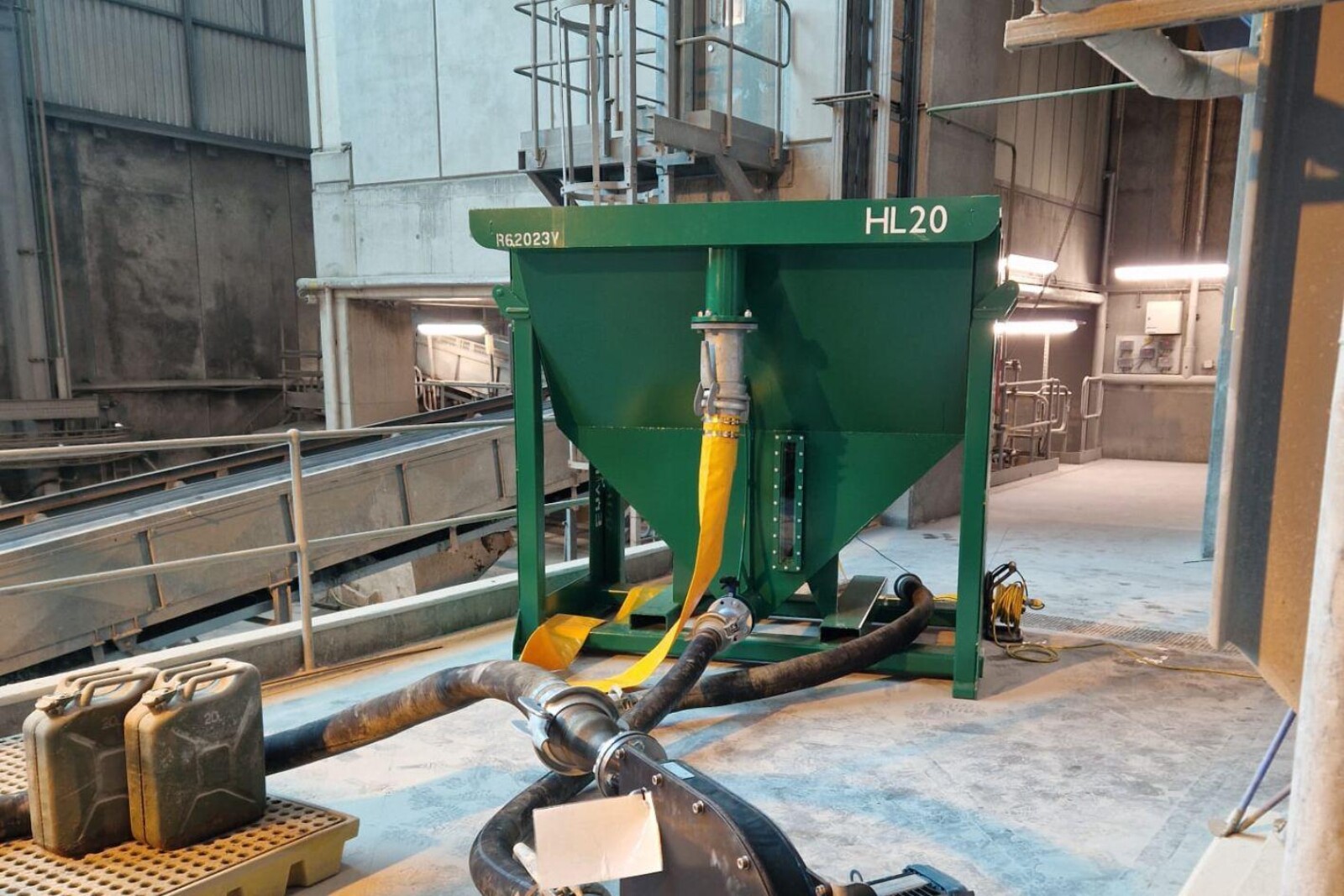

EnviroHub® HL20 Lamella Plate Settlement Tank ready to separate liquids and solids on an industrial project

BENEFITS

Innovative Solid Removal for Contaminated Water

Our settlement tanks work well as part of a full water treatment system or in isolation, depending on your project requirements.

Works as Part of a Fully Compliant Water Treatment Solution

Meets guidance set out by authorities such as the Environment Agency and Water Boards.

Fast and Effective Sludge Removal

Discharge ports for sludge and water, plus a tapered sludge tank for quick and easy removal.

Thorough Separation and Polishing Process

Can separate solids and oils from water with a final polishing point if required.

Tailored to your Exact Requirements

Provision to add monitoring controls to report on final water quality and add flocculant to increase the flow and settlement rate.

Settlement Tanks

Water Treatment

EnviroHub® Lamella Plate Settlement Tank

Expertly Removes Suspended Solid Particles from Water

The EnviroHub® Lamella Plate Settlement Tanks are designed to separate solids from water and are available with either a 20m² or 50m² settling area.

Talk to an Expert View Spec Sheets

Add To Quote

BENEFITS

Innovative Solid Removal for Contaminated Water

Our settlement tanks work well as part of a full water treatment system or in isolation, depending on your project requirements.

Works as Part of a Fully Compliant Water Treatment Solution

Meets guidance set out by authorities such as the Environment Agency and Water Boards.

Fast and Effective Sludge Removal

Discharge ports for sludge and water, plus a tapered sludge tank for quick and easy removal.

Thorough Separation and Polishing Process

Can separate solids and oils from water with a final polishing point if required.

Tailored to your Exact Requirements

Provision to add monitoring controls to report on final water quality and add flocculant to increase the flow and settlement rate.

Settlement tanks

Key Features and Applications

Silt laden contaminated water is fed into the unit where it flows into the base of the lamella plate section of the tank. The water flows upward between the inclined Lamella plates and solids collect at the plate surface, where they slide down the plate, to the sludge collection chamber at the bottom.

- 20m² or 50m² settling area.
- Discharge ports for sludge and water.
- Removable Lamella plates for easy cleaning.
- Tapered sludge tank for fast effective sludge removal.
- Provision for additional monitoring and flocculant for elevated water treatment.
- Silt laden surface water clean-up for safe discharge.
- Excavation dewatering.
- Tank, lagoon or lake dewatering.
- Surface water drainage clean-up.
- Wash down or blast water solids settlement.

Add To Quote

Product Comparison

Comparison Table for EnviroHub® Lamella Plate Settlement Tank

Book a free consultation


Specification	EnviroHub® HL20 Lamella Plate Settlement Tank	EnviroHub® HL50 Lamella Plate Settlement Tank
Capacity	19.95m²	10.2m³
Setting Flow Rate Limit	20m³/h	55m³/h
Total volume	4m³	7m³
Sludge Volume	1m³	1.3m³
Connections	Inlet – 4” Bauer Outlet – 6” Bauer	Inlet – 4” Bauer Outlet – 6” Bauer
Length	2m	3.8m
Width	2.4m	1.7m
Height	2.3m	3.7m
Mass (empty)	2,000kg	2,600kg
Mass (full)	6,000kg	12,800kg
	Download Spec Sheet	Download Spec Sheet

EnviroHub®-HL50-Lamella-Plate-Settlement-Tank 1

EnviroHub® HL20 Lamella Plate Settlement Tank

Capacity	19.95m²
Setting Flow Rate Limit	20m³/h
Total volume	4m³
Sludge Volume	1m³
Connections	Inlet – 4” Bauer Outlet – 6” Bauer
Length	2m
Width	2.4m
Height	2.3m
Mass (empty)	2,000kg
Mass (full)	6,000kg
Download Spec Sheet

EnviroHub® HL50 Lamella Plate Settlement Tank

Capacity	10.2m³
Setting Flow Rate Limit	55m³/h
Total volume	7m³
Sludge Volume	1.3m³
Connections	Inlet – 4” Bauer Outlet – 6” Bauer
Length	3.8m
Width	1.7m
Height	3.7m
Mass (empty)	2,600kg
Mass (full)	12,800kg
Download Spec Sheet

Next steps

Choosing the Right Solution

Book a Free Consultation

Step One: Discuss

Contact us in a way that works best for you. Whether you email, telephone or complete an online enquiry form, a member of the team will be ready to help.
Step Two: Plan

Once we know what the challenge is, we'll contact you and recommend an effective hazard control solution that protects your people and keeps your project on track.
Step Three: Execute

When you're ready to place an order, we'll ask you to organise a PO, and we'll take care of the rest. Our service includes providing the RAMS and logistics for any solutions that you have on site. Once delivered, you can rest assured with ongoing technical support, engineer access and superior customer service throughout the hire.

Send an Enquiry to RVT Group

Technical Enquiries & Pricing

Please provide your project requirements in the form provided to receive a quotation or detailed technical specifications. Our specialist team will assess your site's needs to ensure this equipment provides the most effective hazard control solution.

Product Specification & Quotation Request

Interested in this solution for your project? Submit the form below to obtain a no-obligation quote or further technical information. An RVT Group specialist will review your enquiry and respond promptly with the details you require.

Settlement tanks

Explore Related Solutions

Settlement tanks

Related Resources

Case Study

Noise

Bespoke Water Treatment System Supports £14million Eel Protection Project on the River Tyne

Whitepapers & Guides

Water Treatment

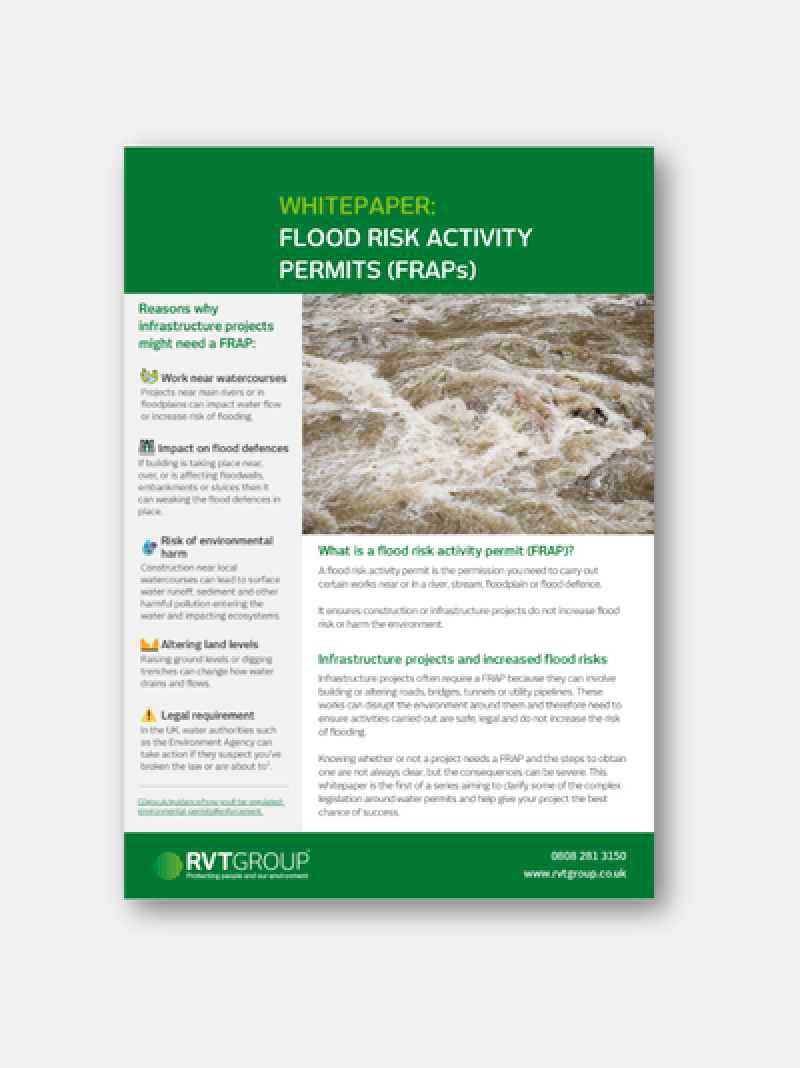

Flood Risk Activity Permits (FRAPs)
