EnviroHub Treatment Tank and dosing skid on the left treating water from a puddle of contaminated and visibly dirty site water run off on the left

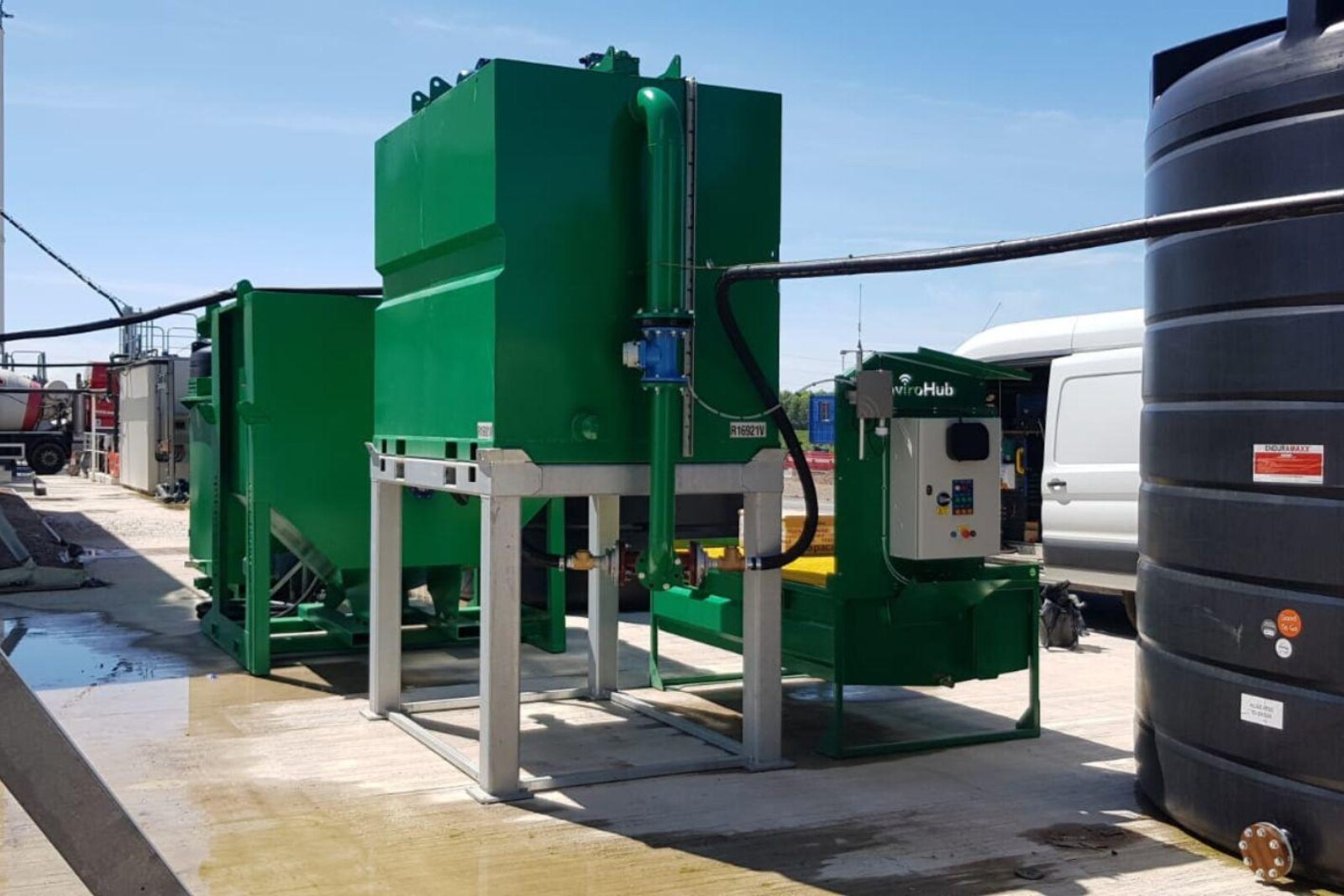

EnviroHub Treatment Tank in the centre of the image on concrete with other water treatment systems and water tank surrounding it

EnviroHub TT10 Treatment Tank on a large earthworks site with a dosing skid in front of it and man in orange hi-vis at the front looking at the system

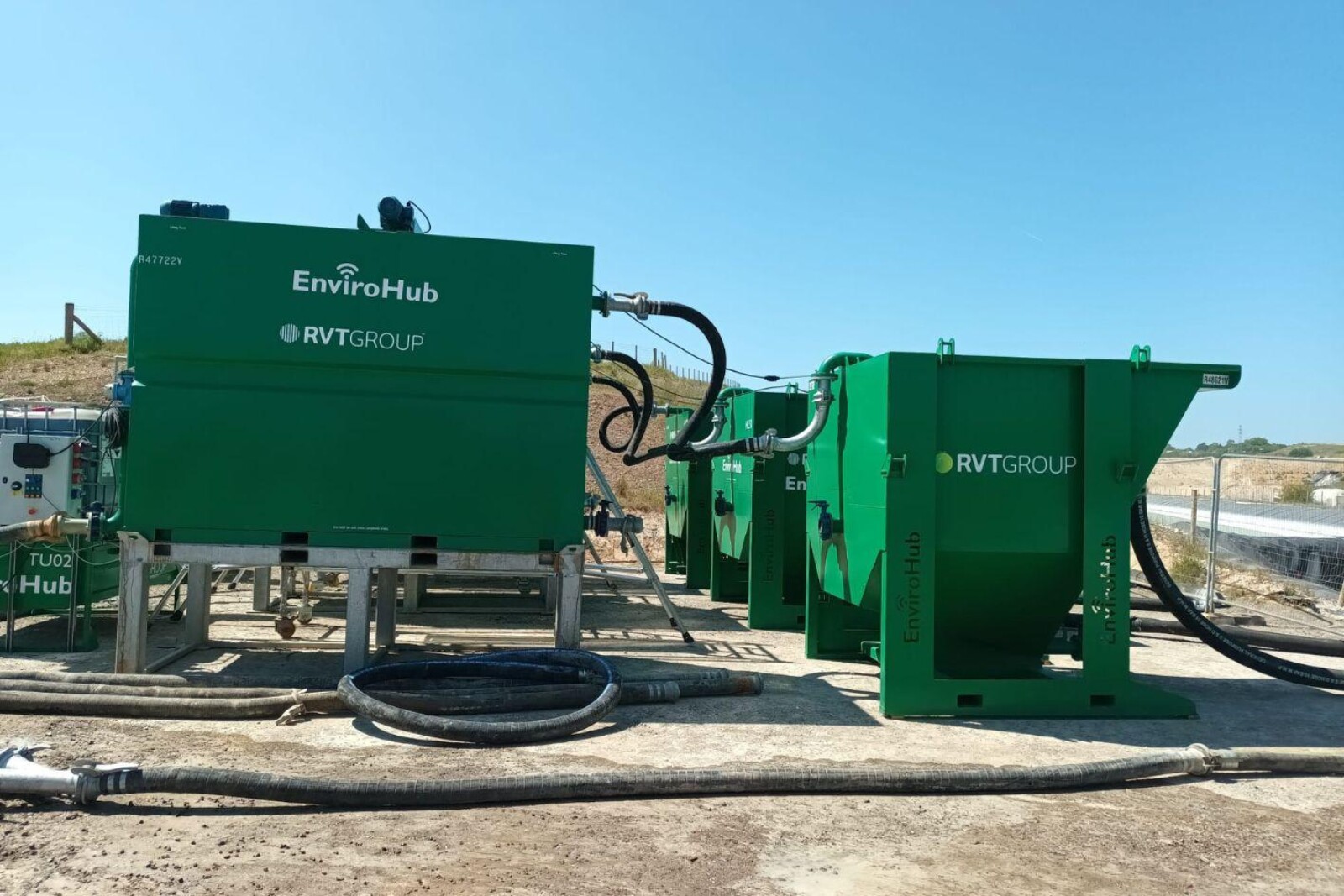

EnviroHub TT10 Treatment Tank on the left connected by a pipe to a settlement tank on the right

BENEFITS

An Agitator Tank for Continuous Flow Mixing

Pre-treatment is essential to getting the best possible water quality outcomes, especially if the water is heavily contaminated with clay or has a high acid or alkaline state.

Available with 5m³ or 10m³ Water Holding Capacity

RVT Group can help understand your project requirements and advise on which size would work best for you.

Modular Units for Thorough Water Management

The EnviroHub® range has been designed so units can be used individually or as part of a full and comprehensive water treatment solution.

Has 3 Compartments for Effective Pre-Treatment

Made up of 3 sections including initial high-speed agitation and dosing, slow agitation and ‘dwell’ and final quality checking.

Effective pH Neutralisation

Can be used with the EnviroHub® TU02 Dosing Skid for pH neutralisation or as pre-treatment for full water treatment.

Water Treatment

EnviroHub® Treatment Tank

Pre-Treats Contaminated Water for Optimised Treatment

Available in two sizes, the treatment tanks are a simple way of batch or continuous processing water to prepare it for further treatment such as settlement of solids or pH correction.

Talk to an Expert View Spec Sheets

Add To Quote

BENEFITS

An Agitator Tank for Continuous Flow Mixing

Pre-treatment is essential to getting the best possible water quality outcomes, especially if the water is heavily contaminated with clay or has a high acid or alkaline state.

Available with 5m³ or 10m³ Water Holding Capacity

RVT Group can help understand your project requirements and advise on which size would work best for you.

Modular Units for Thorough Water Management

The EnviroHub® range has been designed so units can be used individually or as part of a full and comprehensive water treatment solution.

Has 3 Compartments for Effective Pre-Treatment

Made up of 3 sections including initial high-speed agitation and dosing, slow agitation and ‘dwell’ and final quality checking.

Effective pH Neutralisation

Can be used with the EnviroHub® TU02 Dosing Skid for pH neutralisation or as pre-treatment for full water treatment.

Water Treatment

Key Features and Applications

EnviroHub® Treatment Tanks make up part of a carefully balanced and well maintained water management system that accounts for changes to flow rates and incoming water quality.

- 5m³ or 10m³ water holding capacity.
- 2 agitation motors.
- Compatible with other EnviroHub® units.
- Temporary works near watercourses, treating water from cofferdams or temporary diversions before discharge.
- Site runoff control when surface water is contaminated with sediment or construction residues during wet weather.
- Plant washdown operations during shutdowns or servicing when water is used to clean machinery, floors, or containment areas.
- Hull cleaning, bilge pumping, or surface preparation activities near marine environments.

Add To Quote

Product Comparison

Comparison Table for EnviroHub® Treatment Tank

Book a free consultation


Specification	EnviroHub® TT05 Treatment Tank	EnviroHub® TT10 Treatment Tank
Capacity	5.2m³	10.2m³
Max Flow Rate Limit	25m³/h	55m³/h
Motors	2 x 1.1kW	2 x 1.1kW
Power	16a 415v (5 pin commando socket)	16a 415v (5 pin commando socket)
Total Running Current	5 amps	5 amps
Generator Supply	20kva	20kva
Length	2.3m	3.8m
Height	3.7m	3.7m
Width	1.7m	1.7m
Mass (empty)	1,800kg	2,600kg
Mass (full)	17,000kg	12,800kg
	Download Spec Sheet	Download Spec Sheet

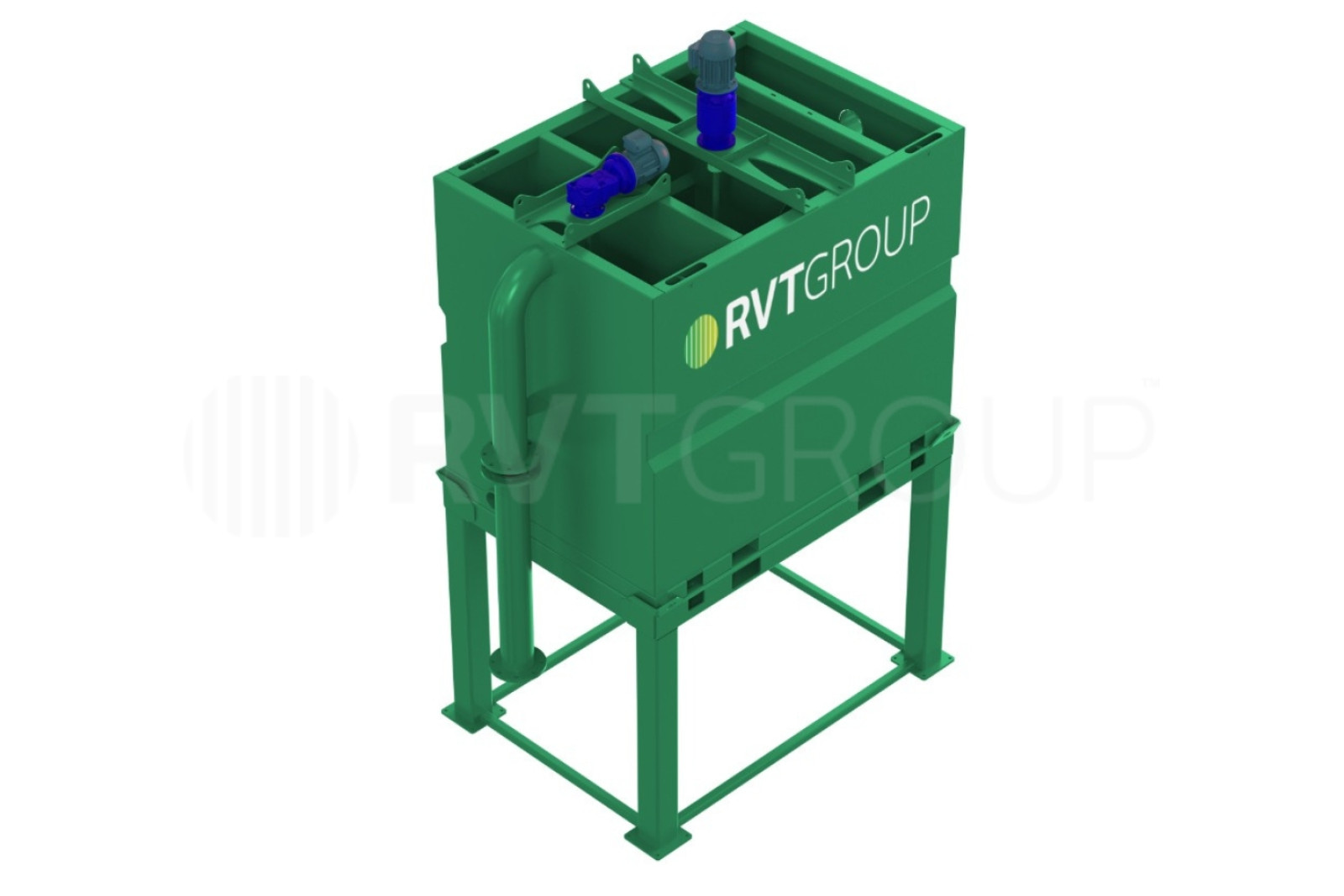

EnviroHub® TT05 Treatment Tank

Capacity	5.2m³
Max Flow Rate Limit	25m³/h
Motors	2 x 1.1kW
Power	16a 415v (5 pin commando socket)
Total Running Current	5 amps
Generator Supply	20kva
Length	2.3m
Height	3.7m
Width	1.7m
Mass (empty)	1,800kg
Mass (full)	17,000kg
Download Spec Sheet

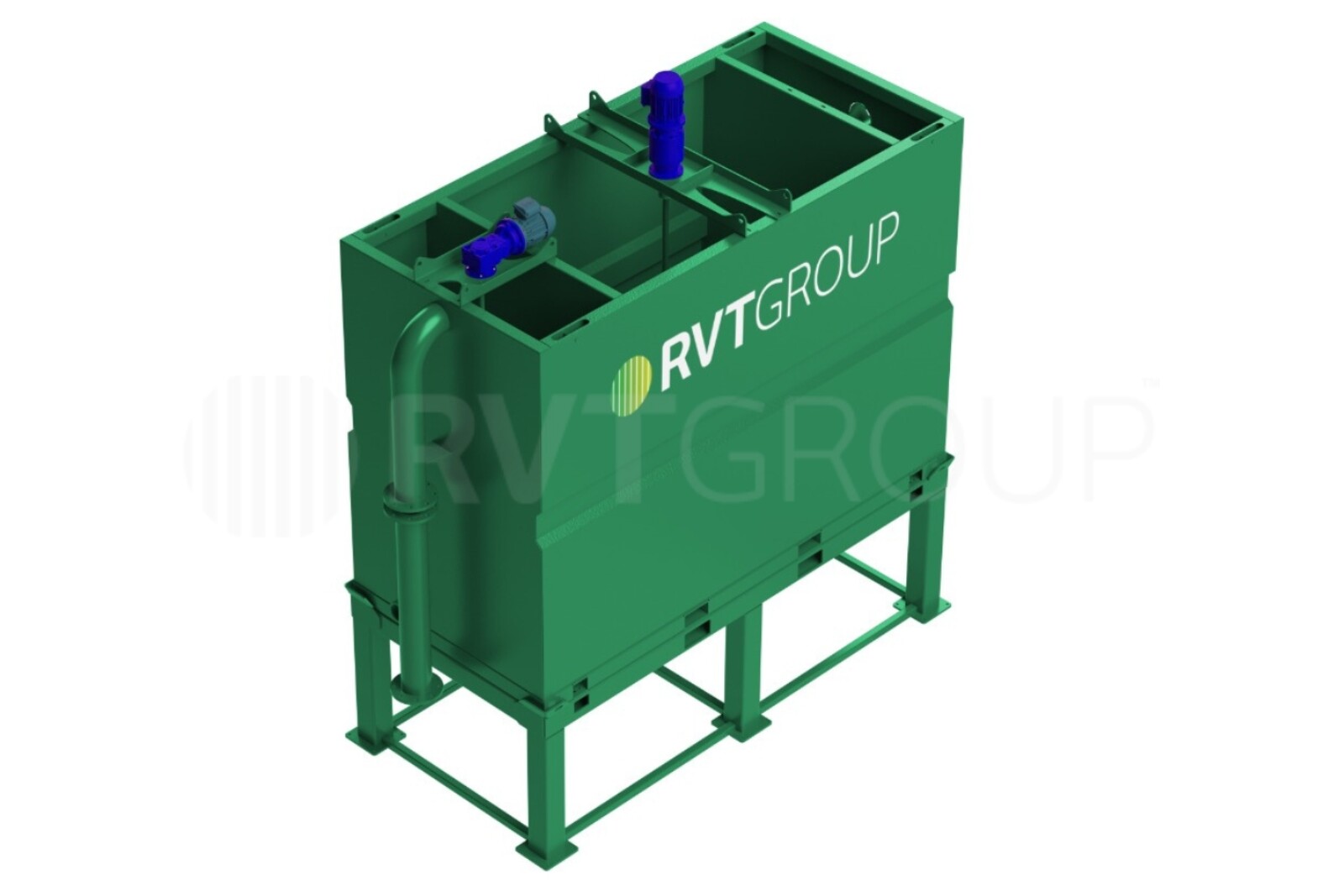

EnviroHub® TT10 Treatment Tank

Capacity	10.2m³
Max Flow Rate Limit	55m³/h
Motors	2 x 1.1kW
Power	16a 415v (5 pin commando socket)
Total Running Current	5 amps
Generator Supply	20kva
Length	3.8m
Height	3.7m
Width	1.7m
Mass (empty)	2,600kg
Mass (full)	12,800kg
Download Spec Sheet

Next steps

Choosing the Right Solution

Book a Free Consultation

Step One: Discuss

Contact us in a way that works best for you. Whether you email, telephone or complete an online enquiry form, a member of the team will be ready to help.
Step Two: Plan

Once we know what the challenge is, we'll contact you and recommend an effective hazard control solution that protects your people and keeps your project on track.
Step Three: Execute

When you're ready to place an order, we'll ask you to organise a PO, and we'll take care of the rest. Our service includes providing the RAMS and logistics for any solutions that you have on site. Once delivered, you can rest assured with ongoing technical support, engineer access and superior customer service throughout the hire.

Send an Enquiry to RVT Group

Technical Enquiries & Pricing

Please provide your project requirements in the form provided to receive a quotation or detailed technical specifications. Our specialist team will assess your site's needs to ensure this equipment provides the most effective hazard control solution.

Product Specification & Quotation Request

Interested in this solution for your project? Submit the form below to obtain a no-obligation quote or further technical information. An RVT Group specialist will review your enquiry and respond promptly with the details you require.
