Cement Plant Shutdowns: Where the Exposure Risk Really Sits

Most cement plant shutdown teams have planned dozens of outages. The scope, the contractor programme and the permit system are well understood. What is harder to pin down is how airborne hazards behave once refractory breakout, hot work, cleaning and relining are all under way in the same few days, in the same connected spaces.

Exposure in a shutdown is rarely driven by a single task. It comes from the density of work, from trades overlapping, and from a plant layout that keeps changing as manways open, ducts are routed and work faces move. A control arrangement that suits the first shift can be poorly matched to the work by day five. This article looks at the main shutdown activities, the hazards each one creates, and where temporary controls tend to come under the most pressure.

Refractory breakout: more than a silica question

Respirable crystalline silica is the hazard most teams expect during breakout, and the material assessment rightly starts there. ^[1] Spent lining is rarely just brick, however. Depending on the zone, it can carry clinker and kiln dust, which is strongly alkaline and can cause serious eye damage and skin burns on contact with moisture. ^[16]

Lining history matters as well as the current specification. Magnesia-chrome bricks have historically been used in high-temperature kiln zones, and the formation of hexavalent chromium compounds in cement production is a recognised concern. ^[17] Where older chrome-bearing linings may remain, the assessment should establish what is being removed before breakout begins.

The practical challenge is volume and confinement. Mechanical breakout in an enclosed shell generates dust far faster than general ventilation can dilute it, and settled material is disturbed again by every trade that follows. Capture at the breakout face, a defined negative-pressure direction so dust does not migrate towards the cooler or firing hood, and a waste route that avoids repeated handling all do more than adding air movement. ^[1, 3] Breakers working inside a steel shell also create a noise exposure that extends well beyond the operator. ^[8]

Welding, cutting and gouging inside kilns and cyclones

HSE’s enforcement position changed in 2019: mild steel welding fume is now treated as a human carcinogen, general ventilation does not achieve adequate control for indoor welding, and local exhaust ventilation is expected. Welding inside a kiln shell or cyclone is, if anything, a more demanding case than a typical workshop. HSE has also been clear that short duration does not remove the need for exposure control. ^[15] That is significant for anchor welding ahead of refractory installation, where a large number of short welds can add up to substantial fume.

Air-arc gouging and thermal cutting produce heavier fume and higher noise than most welding. Hardfacing and stainless consumables on mill or crusher components can introduce manganese or hexavalent chromium, so the consumable data matters as much as the process.

The control difficulty is movement. Welders progress along the shell, around cyclone cones and between anchor positions, and capture hoods are only effective close to the arc. Extraction that is not repositioned with the work quickly becomes ineffective, and forced supply air introduced for cooling or fresh air can create draughts that pull fume away from the capture point. ^[3, 10]

Preheater, cyclone and riser cleaning

Clearing build-ups in the preheater tower releases fine, alkaline raw meal and kiln dust, often with residual heat still in the structure. ^[5, 16] The tower adds a vertical dimension that a single-level work area does not: dust released at one stage can migrate to teams working above or below, and with manways open the tower can act as a chimney.

That makes airflow direction a planning question rather than an equipment question. Agreeing how fans, dampers and temporary extraction will be set, and who controls them, helps keep dust moving away from occupied levels and manways. Where cyclones or ducts are assessed as confined spaces, temporary ventilation must work within the site’s safe system of work for entry, isolation, atmospheric testing and rescue. ^[4]

Mills, bag filters and the coal system

Filter bag changes and mill internals involve fine, settled dust that is easily re-entrained, so containment and local extraction during removal and bagging matter as much as during the task itself. ^[3]

The coal grinding and handling system brings different considerations. Where an area carries a hazardous area classification for combustible dust, any temporary extraction, ventilation, heating or lighting introduced during the shutdown needs to suit that classification and the site’s hot work and isolation arrangements. ^[18] This is easy to overlook when equipment is specified in a hurry or moved between areas mid-shutdown.

Relining, gunning and dry-out

Installation brings its own dust. Mixing dry castables and gunning refractory generate fine, cement-based dust, often in the same confined spaces where breakout has only just finished, and with other trades working nearby. ^[1]

Curing and dry-out are governed by the refractory manufacturer’s instructions, and general heating or drying in working areas needs to be coordinated with that schedule rather than run independently of it. ^[7] For coating work, the manufacturer’s air temperature, surface temperature, humidity and dew point requirements apply throughout application and curing. A warm air reading alone does not establish that a cold steel surface is ready to coat. ^[6] In winter shutdowns, temporary heating, air movement and dehumidification can help, provided they are specified around the space and the task and give moisture a route out. ^[14]

Residual heat: cooling and capture pull in different directions

Kilns, coolers and refractory-lined equipment retain heat long after production stops, and heat stress depends on radiant heat, humidity, work rate and protective clothing, not just air temperature. ^[5]

The less obvious point is the interaction with dust. Blowing cooling air into a shell that still contains loose material can redistribute it into breathing zones and towards neighbouring teams. Cooling, fresh-air supply and extraction need to be designed together so that cooling does not undermine capture. Entry and continued working decisions remain with the site’s assessment and safe system of work. ^[4, 5]

The cumulative picture: overlap and change

Individually, each of these activities is well understood. The risk builds where they overlap: breakout in the kiln while welders work in the cyclones, cleaning in the tower above an open manway, or a new contractor arriving mid-shutdown with a different method. The people most exposed are often not those doing the task, but those working next to it. ^[8]

Monitoring is useful only when it addresses the right question. Area and boundary readings indicate whether controls contain dust, but do not determine a worker’s personal exposure to respirable crystalline silica. ^[9] Extraction systems also need checks when work shifts, ducting changes or filter resistance increases, not just at the outset. ^[3, 10]

Questions worth asking of a shutdown control plan

• Does the material assessment reflect the lining history and build-up chemistry, not only the current refractory specification?
• With the kiln, tower and cooler open at the same time, which way will air move, and who controls the fans and dampers?
• Which tasks will overlap, and does the control layout protect the neighbouring team as well as the operator?
• How will fume capture be maintained as welding positions move along the shell or around a cyclone?
• Is any temporary equipment going into an area with a hazardous area classification?
• What should monitoring tell you (personal exposure, area containment or site boundary), and who acts on the results?
• What will trigger a review: a new contractor, a change of task, a duct reroute, or a rise in filter differential pressure?

How RVT approaches it

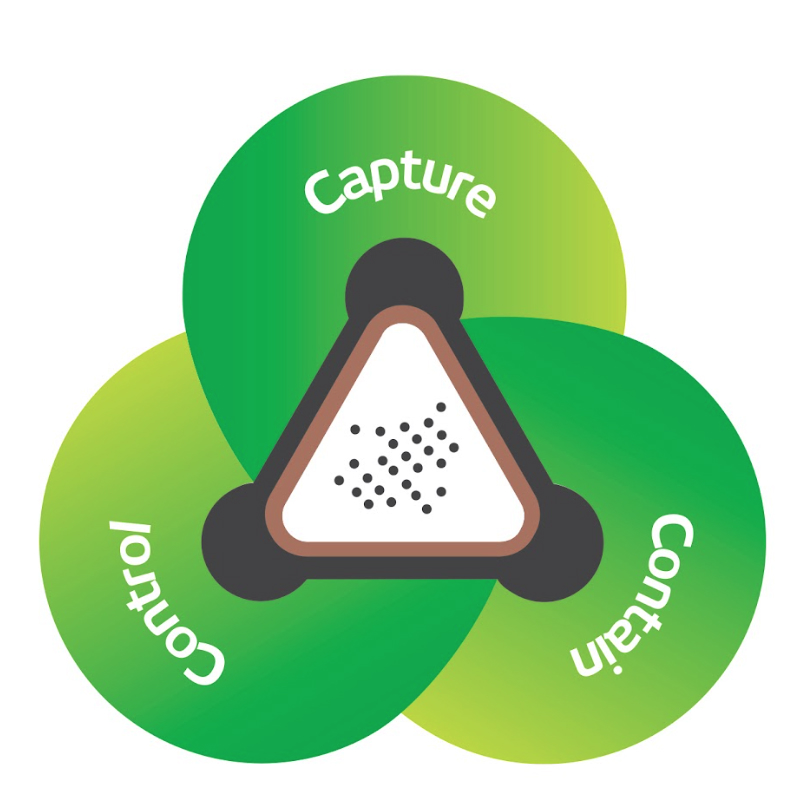

RVT Group plans temporary hazard control around the 3 C’s: Capture contaminants at source, Contain their spread, and Control the remaining risk through the additional measures the assessment identifies. ^[12]

Our Industry team works alongside plant engineering, health and safety and contractor teams on cement outages, supporting dust, fume, ventilation, climate control, noise and monitoring requirements from site assessment and system specification through to installation, technical support and removal. We have supported Heidelberg Materials and provide temporary hazard control equipment hire for cement plant shutdowns. ^[13]

To discuss the hazards in your next shutdown scope, contact Craig Chattell, Industry Business Unit Leader, or arrange a free site assessment. ^[11]

07557 801725 | [email protected]

Book your Free Site Assessment

Sources

1. HSE FD14 Furnace relining
Related guidance for refractory work in foundries; used for material assessment, dust segregation, cleaning and waste handling.

2. HSE Welding fume: Control the risk

3. HSE HSG258 Controlling airborne contaminants at work

4. HSE L101 Safe work in confined spaces

5. HSE Heat stress

6. Jotun Jotamastic 87 GF Application Guide
Illustrates product-specific environmental requirements. Use the current guidance for the coating actually selected.

7. HWI Curing and Dryout General Guidelines
Illustrates product-specific refractory curing and dry-out requirements.

8. HSE Noise in engineering

9. HSE Monitoring the control of exposure to hazardous substances

10. HSE Welding fume: Maintain exposure controls

11. RVT Group Free Hazard Control Assessment

12. RVT Group Preparing for energy from waste outage season

13. RVT cement campaign brief and approved flyer copy
Craig Chattell’s Cement Sprint Plan UK Ireland workbook and approved cement shutdown flyer copy.

14. RVT Group Construction drying before fit out

15. HSE Safety bulletin: Change in enforcement expectations for mild steel welding fume

16. Cement Australia Safety Data Sheet: Cement Kiln Dust
Illustrative supplier SDS for kiln dust hazards (alkalinity, eye and skin effects). Replace with a UK/EU supplier SDS if available.

17. Problems of the Formation of Dangerous Cr(VI) Compounds in Portland Cement and their Elimination Using New Refractories (Key Engineering Materials)
Supports the link between magnesia-chrome kiln linings and Cr(VI) concerns. Verify against a UK refractory supplier or HSE source before publication.

18. HSE Hazardous area classification
